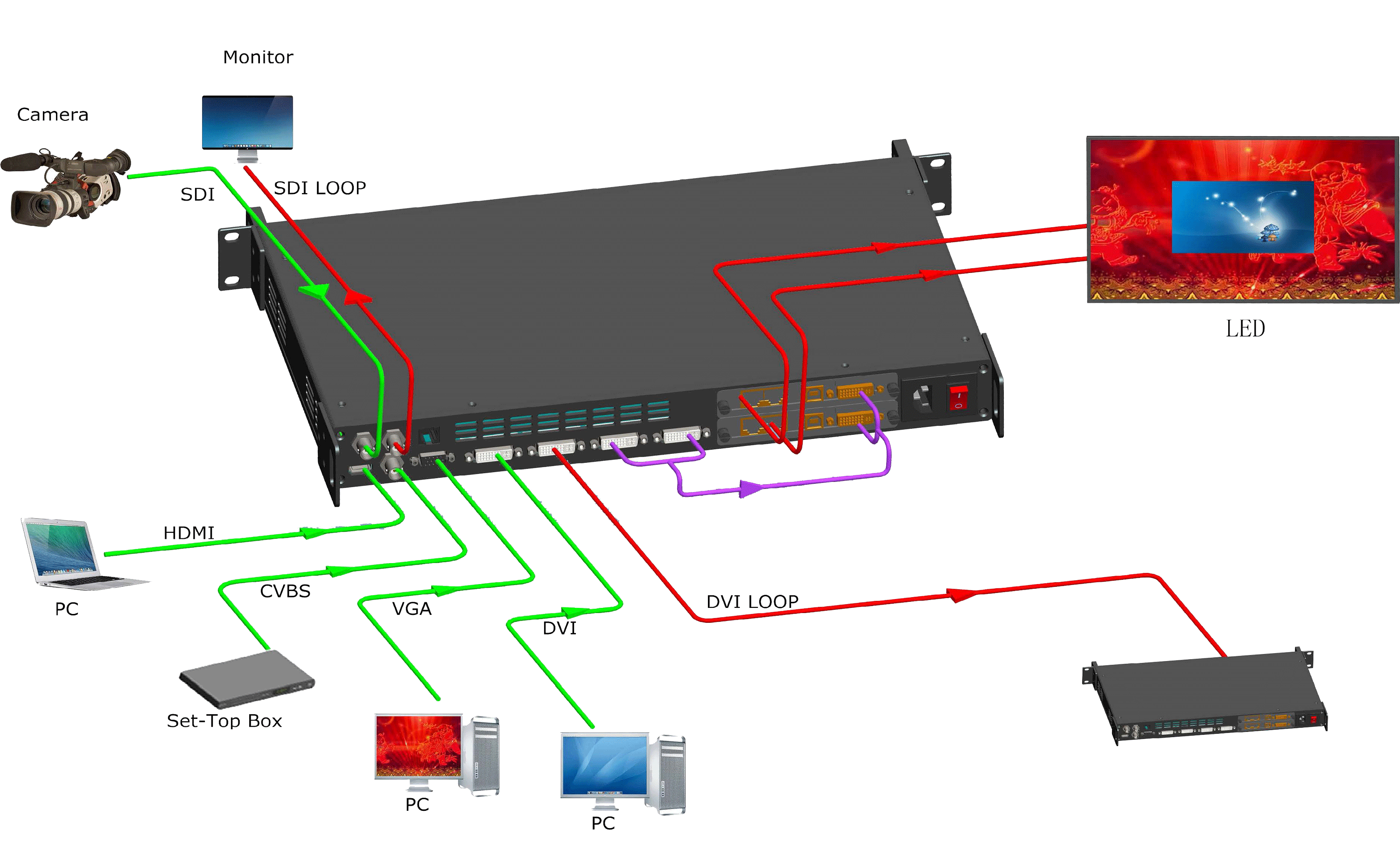

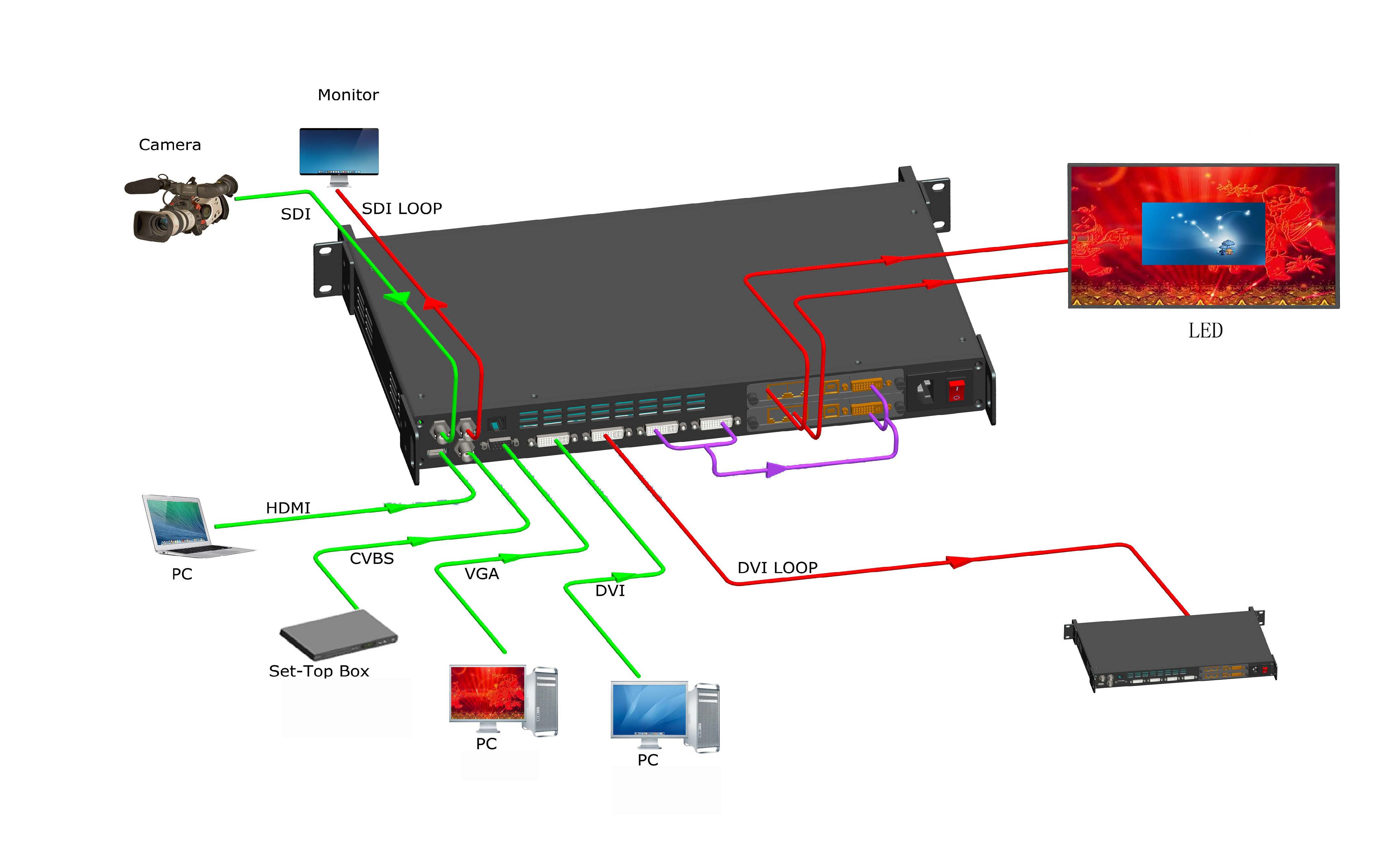

- Diagram
- Downloads
- Seamless switching between any sources
- User-defined output resolutions
- PIP for any sources at any position and size
- Support EDID management
- Multple unit stack for bigger video wall
- Third-party protocol control
- Two sender card slots
- Input hot backup
| M-ONE | |
| Video Inputs | |
|---|---|
| |
Standard 1 x DVI, 1 x HDMI, 1 x VGA, 1 x CVBS and Optional 1 x SDI |
| Video Outputs | |
| |
Standard 2 x DVI and 1 x VGA |
| Control/remote — switcher | |
| | 1 RS-232: 1 rear panel 9-pin female D connector |
| Input formats and resolutions | |
| Resolution range | DVI: VESA: 800 x 600| 1024x768|1280x1024|1600x1200| 1920x1080|1920x1200|2048x1152 HDMI: SMPTE: 480i|576i|720p|1080i|1080p VESA: 800x600|1024x768|1280x1024|1600x1200| 1920x1080|1920x1200|2048x1152 VGA: 800x600|1024x768|1280x1024|1600x1200| 1920x1080|1920x1200 CVBS: SMPTE: 480i|576i YPbPr: SMPTE: 480i|576i|480p|576p|720p|1080i|1080p SDI: SMPTE: 480i|576i|720p|1080i|1080p|1080psf |
| Output formats | |
| Standards | SDI: SD-SDI, HD-SDI, 3G-SDI VGA-UXGA HDMI: HDMI1.3 Single Link |
| Output resolutions range | |
Resolution range | SMPTE: 720p|1080p VESA: 800 x 600| 1280x720|1280x1024|1400x1050| 1600x1200|1920x1080|1920x1200|2048x1152| 2560x816|1024x1280|1152x1152|1280x1280|1536x1536|2560x1024| 2560x1600|3840x540 |
| Other information | |
| | AC 100V-264V(Typical 110V/220V),50/60Hz |
| | 20W |
| | -25℃-55℃(Typical 25℃) |
| | 20%-90% |
| | 2.0KG (NW),3.0KG (GW) |
| | 480mmx265mmx44mm(Product),540mmx365mmx135mm(Carton) |
| User Manual: | M-ONE* |
| Picture: | Click here to view * |
| Product Firmware: | Firmware Version: 1.00 |
| Diagram: | Click here to view |
| Product Draw (dxf/pdf): | |
