- Preview seamless switch
- User-defined output resolutions
- Support EDID management
- Dot to Dot mapping for video wall
- Third-party protocol control
- Output backup

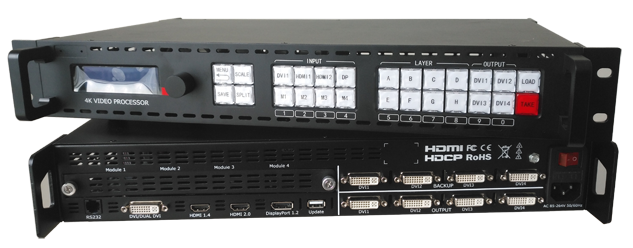

V-ONE | |
Video Inputs | |
---|---|
Number/signal type |
Standard 1 x DVI/Dual Link DVI (4K@30Hz) 1 x HDMI1.4(4K@30Hz) 1 x HDMI2.0 (4K@60Hz) 1 x DisplayPort 1.2 (4K@60Hz) |
Video Outputs | |
|
Standard 4 x DVI 4 x DVI backup |
Control/remote — switcher | |
Serial control port USB Port | 1 RS-232: 1 rear panel 9-pin female D connector USB update port |
Input formats and resolutions | |
Resolution range | DVI: VESA: 800 x 600| 1024x768|1280x1024|1600x1200| 1920x1080|1920x1200|2048x1152 HDMI: SMPTE: 480i|576i|720p|1080i|1080p VESA: 800x600|1024x768|1280x1024|1600x1200| 1920x1080|1920x1200|2048x1152 VGA: 800x600|1024x768|1280x1024|1600x1200| 1920x1080|1920x1200 CVBS: SMPTE: 480i|576i YPbPr: SMPTE: 480i|576i|480p|576p|720p|1080i|1080p SDI: SMPTE: 480i|576i|720p|1080i|1080p|1080psf |
Output formats | |
Standards | SDI: SD-SDI, HD-SDI, 3G-SDI VGA-UXGA HDMI: HDMI1.3, 1.4,2.0 DP: 1.0, 1.1, 1.2 DVI: 1.0, 1.1 |
Output resolutions range | |
Resolution range | SMPTE: 720p|1080p VESA: 800 x 600| 1280x720|1280x1024|1400x1050| 1600x1200|1920x1080|1920x1200|2048x1152| 2560x816|1024x1280|1152x1152|1280x1280|1536x1536|2560x1024| 2560x1600|3840x540 |
Other information | |
| AC 100V-264V(Typical 110V/220V),50/60Hz |
| 20W |
| -25℃-55℃(Typical 25℃) |
| 20%-90% |
| 3.0KG (NW),6.6KG (GW) |
| 480mmx320mmx67mm(Product),540mmx380mmx140mm(Carton) |
User Manual: | V-ONE* |

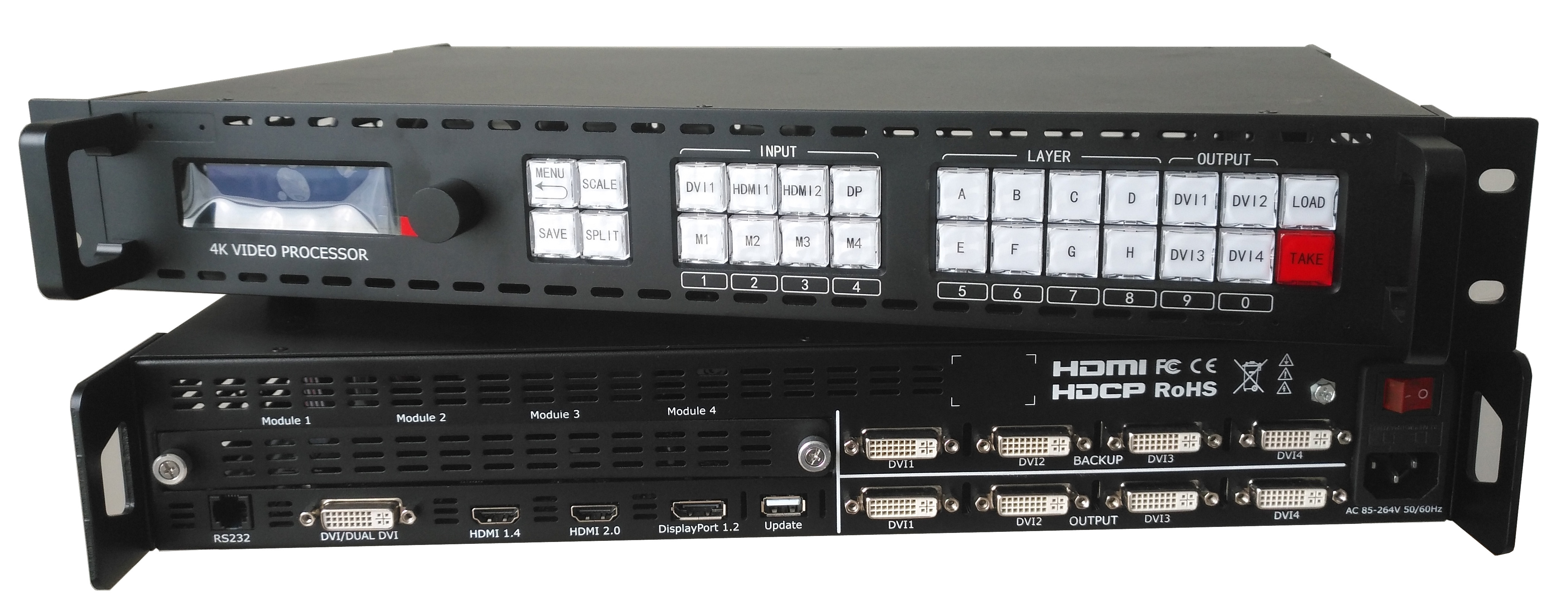

Picture: | Click here to view * |
Product Firmware: | Firmware Version: 1.00 |

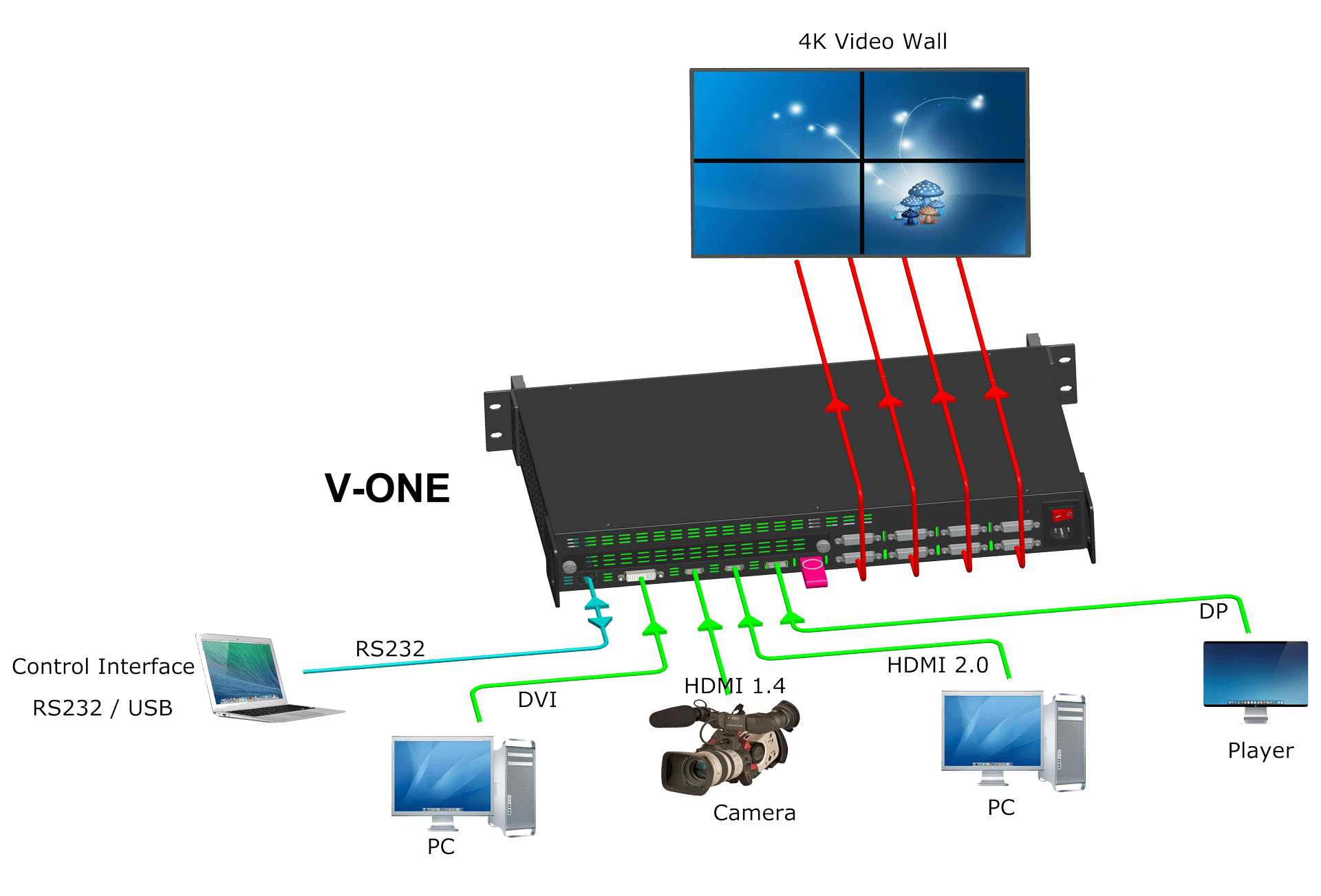

Diagram: | Click here to view |
